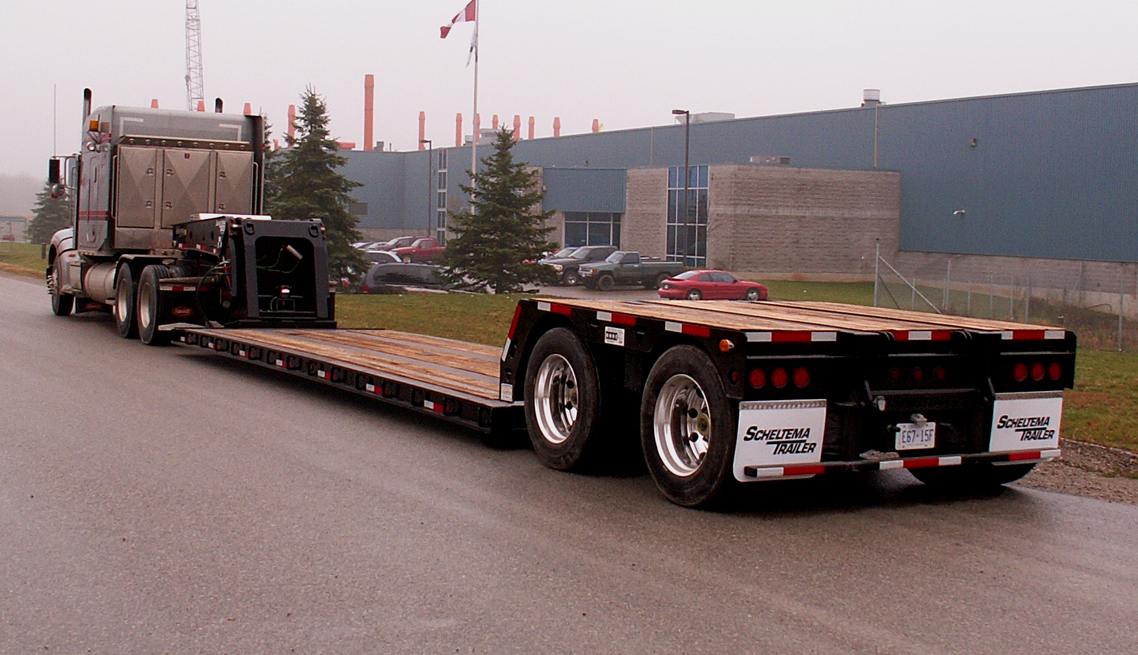

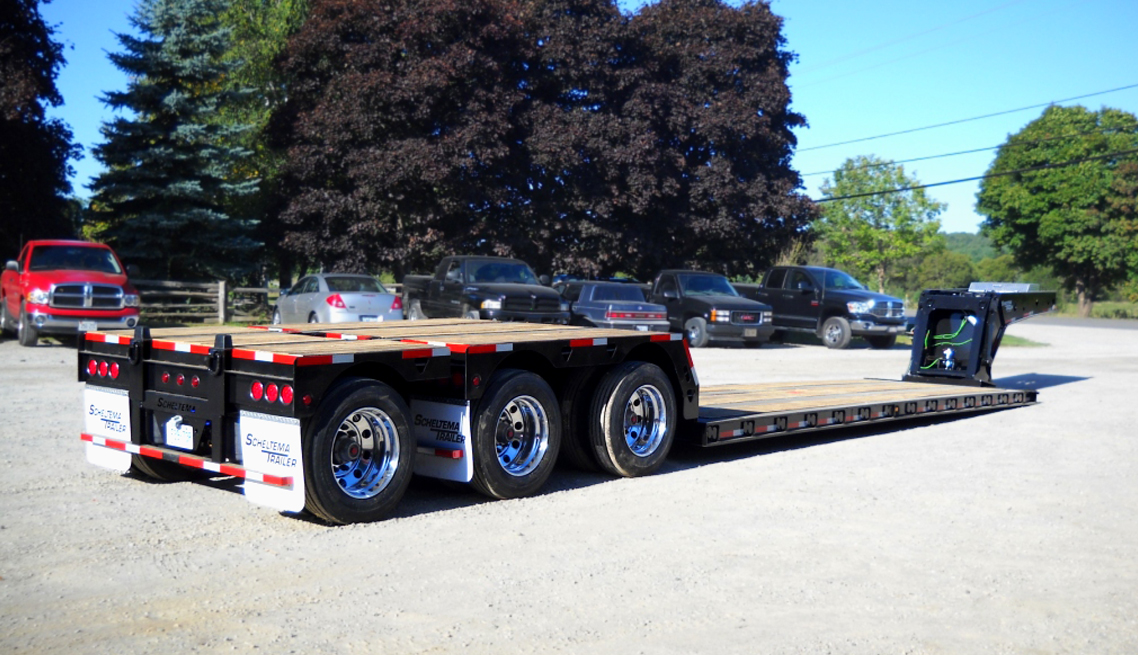

DOUBLE DROP DECK

Scheltema Trailer offers a variety of double drop deck trailers; fixed gooseneck, removable gooseneck, and extendable decks, to name a few of the options available. Scheltema Trailer’s carrying capacities range from 40-50 ton. Manufacturing all double drop decks from T-1 steel, Scheltema is able to maximize the strength and longevity of our trailers. The strength of our trailers is just one of the many ways Scheltema Trailer has earned its revered reputation as the most durable trailer on the market.

Double Drop Deck Specification

Fixed Gooseneck includes:

  • Single king pin location.
  • 51″ Fifth Wheel height.
  • 1-5/16” Apitong floor.
  • Constructed from 100,000 P.S.I. yield (T-1) steel.
  • Sandblasted, epoxy primed and painted.

Mechanical Removable Gooseneck includes:

  • Single king pin location.
  • 51″ Fifth Wheel height.
  • Air operated deck locking pin.
  • Constructed from 100,000 P.S.I. yield (T-1) steel.
  • Sandblasted, epoxy primed and painted.

Available Gooseneck Options:

  • Various King Pin Heights (48”- 54”).
  • Double King Pin Variations (94”-120”).
  • Hydraulic detachable cantilever, non-ground bearing.
  • Hydraulic Stinger to support gooseneck.
  • Hydraulic operated column.
  • Hydraulic operated deck locking pin.
  • Wet Line or Power Pack or both Wet Line and Power Pack.
  • Air operated column.
  • Swing out Lights.
  • Bolt on Fenders.
  • Weld on Fenders.
  • Extension Lugs.
  • Gooseneck extension.
  • Column: Lights, Chain Bar and Doors.

Deck includes:

  • 29’6” long x 8′- 6″ wide.
  • 1-5/16” Apitong floor.
  • Constructed from 100,000 P.S.I. yield (T-1) steel.
  • Extension Brackets 12” wide swinging type (T-1) steel.
  • Flag holders.
  • Lashing rings.
  • Sandblasted, epoxy primed and painted.

Available Options:

  • D-Rings: Flat or Bent
  • Extendable Deck from 29’6” to 47’

Rear Bridge includes:

  • 55″ Axle spreads. (Depending on territory)
  • Constructed from 100,000 P.S.I. yield (T-1) steel.
  • Truck-Lite LED system.
  • Flag holders.
  • Tires: 255/70R 22.5.
  • Wheels: 22.5 x 8.25, Steel wheels inside and outside.
  • Brakes: Drum
  • Tandem Axle:  25,000 lbs. capacity each.
  • Suspension: Hendrickson Turner or Ridewell, 25,000 lbs. capacity.
  • Sandblasted, epoxy primed and painted.

Available Options:

  • Axle Spread (55”, 60”,72”)
  • Width: 8’6 – 10’
  • Deck Connection: Removable.
  • Lighting: Strobe (On/Off Switch, Battery)
  • 3rd Pin on axle.
  • D-Sign/D-Sign Brackets.
  • Override Ride Height Control.
  • Swing out/pull out lights.
  • Aluminum wheels.
  • Disc or ABS braking system.

QUALITY GUARANTEE

Scheltema Trailer as a company is dependable and exceeds any standard of product quality. By way of its highly experience staff, a combined 100 years of professional design and manufacturing experience in our team of engineers, fabricators, and management, Scheltema Trailer consistently strives to produce reliable  custom quality products. Scheltema Trailer is a family company, and in saying so, our team of employees are a reflection of what we stand for but in their work; reliability and dependability on the quality of our products. Our team delivers high end manufacturing techniques and a full manufacturing facility capable of CNC, flame cutting, machining, shearing, forming operations.
