MINI DECKS

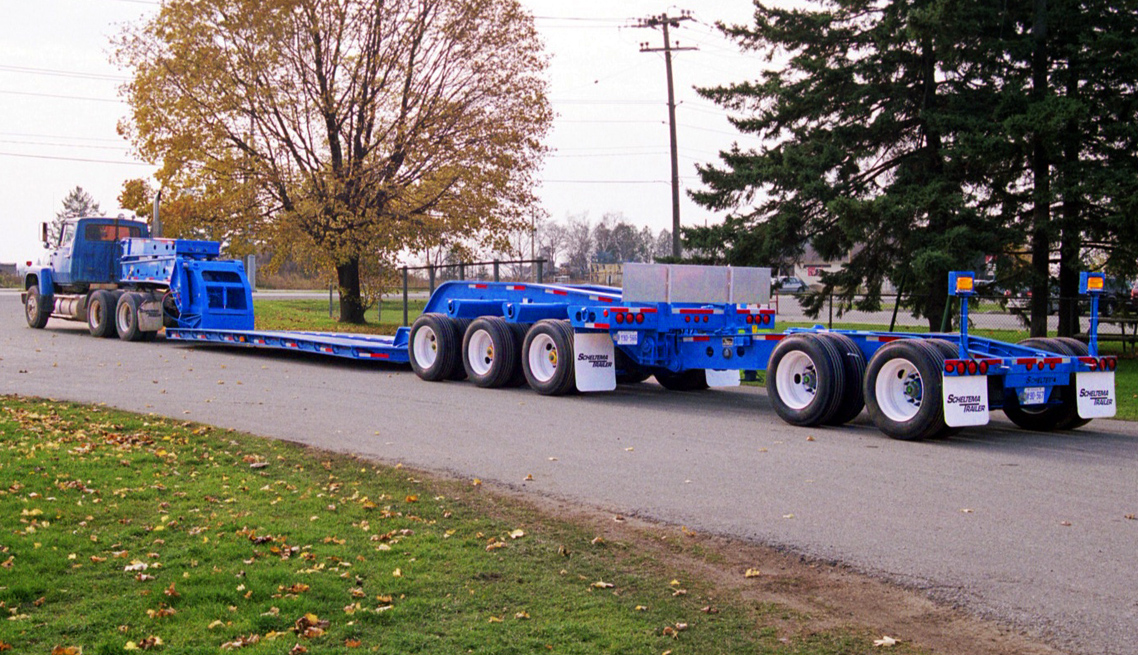

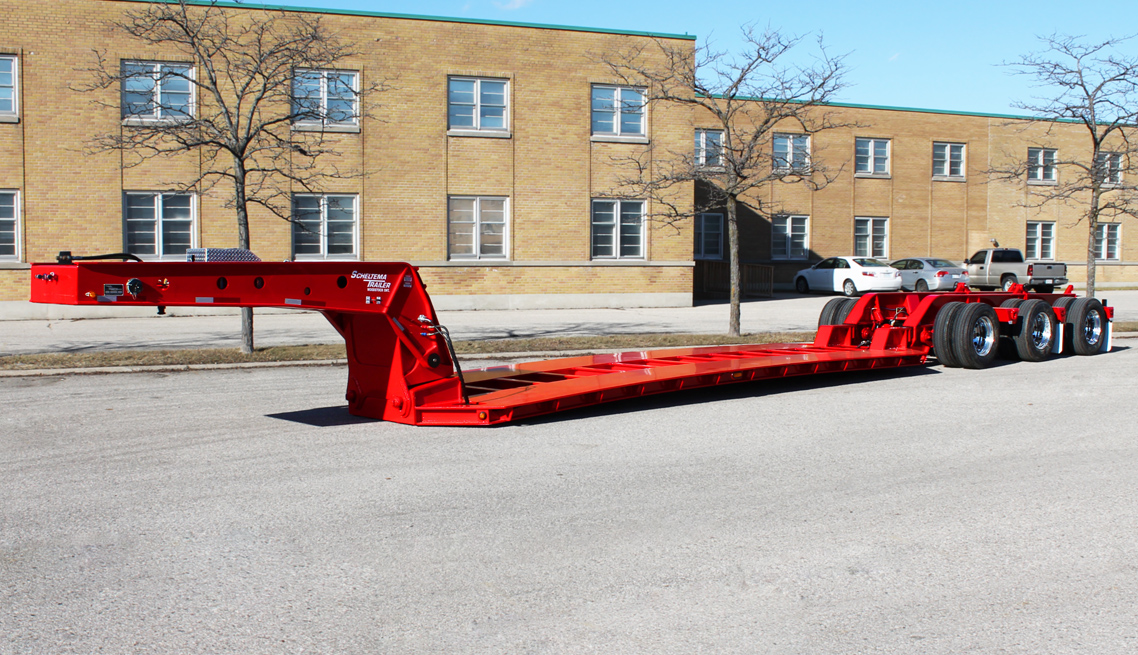

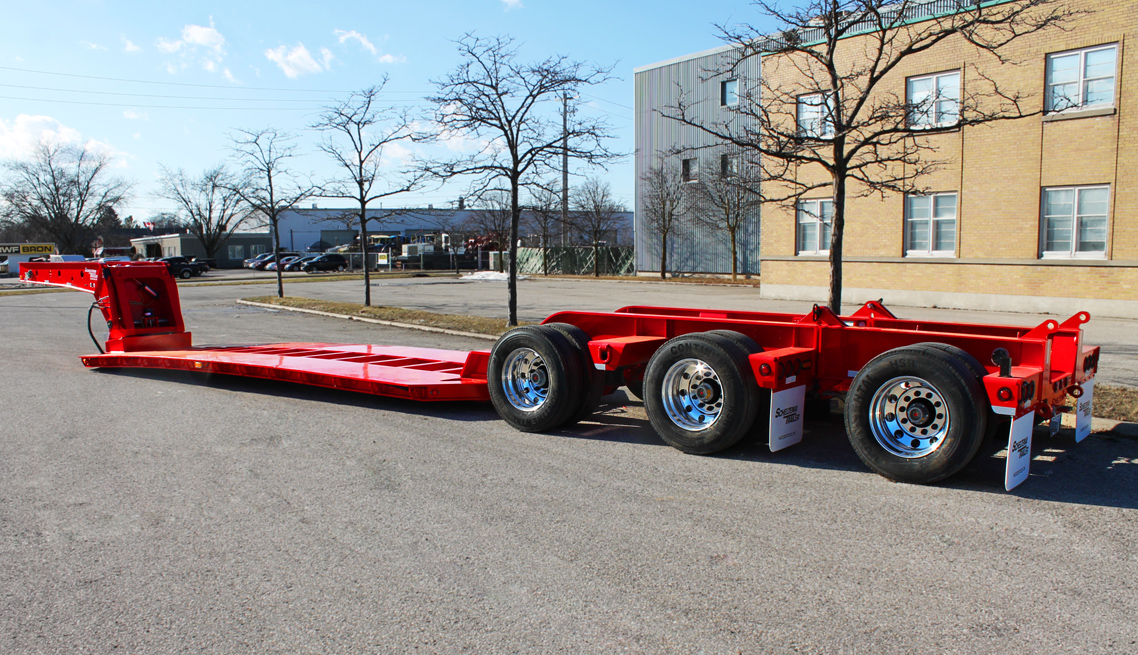

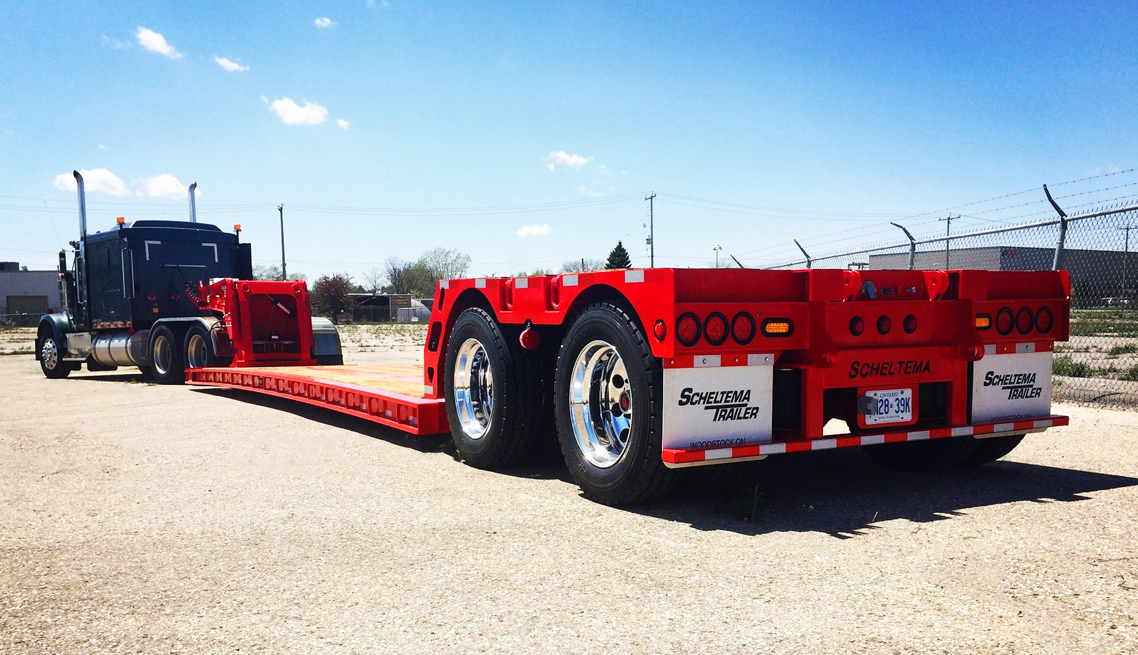

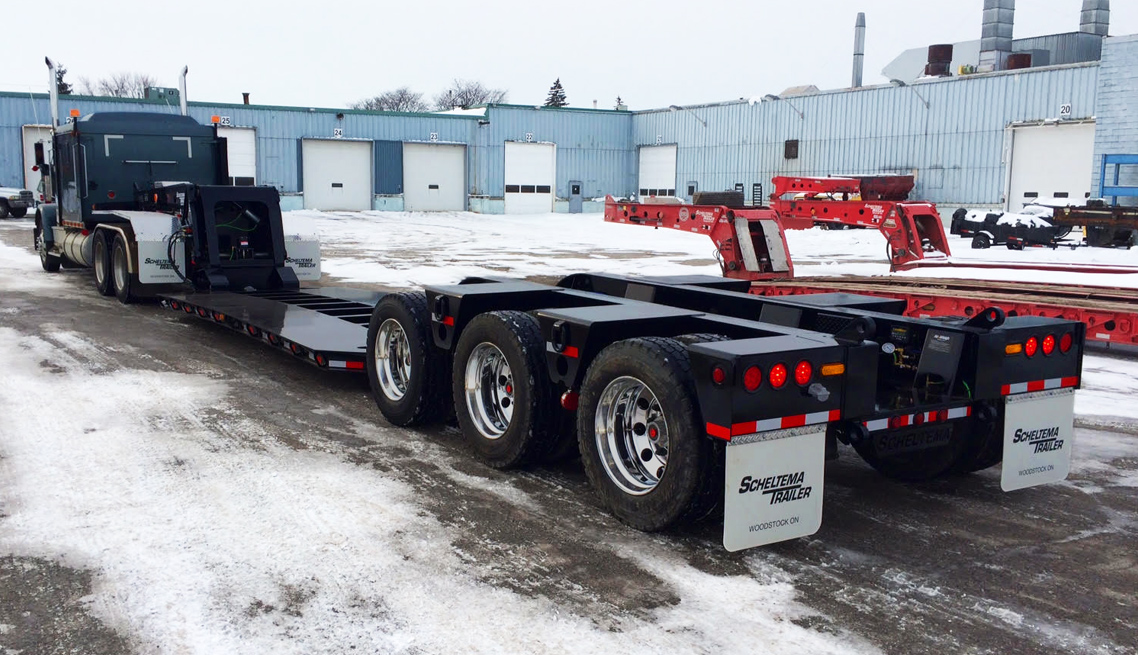

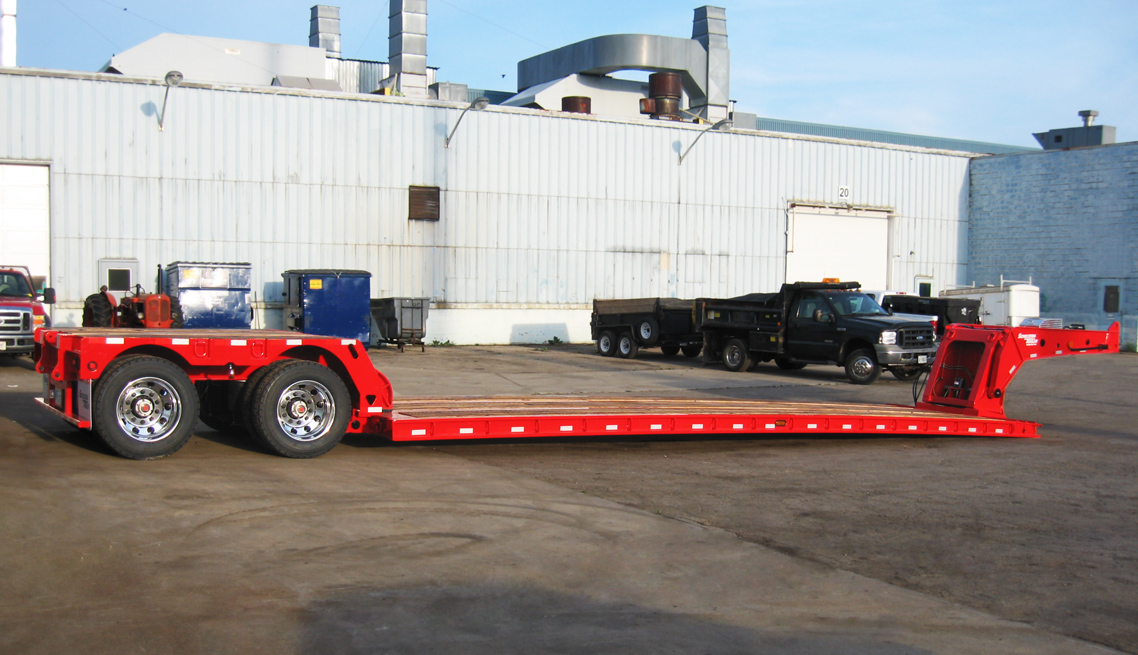

Scheltema Trailer has taken its 100 years of combined professional design and manufacturing experience, to develop an industry leading Mini Deck series. Scheltema Trailer is one of the few companies to offer a true Mini Deck trailer. Our design is capable of carrying up to 65 ton capacity in 10 only feet. With a 7 inch deck height and an adjustable ride height, these trailers are capable of road clearances as low as 2 inches. These trailers have been developed to give you maximum versatility while it eliminates any height limitations you may have without jeopardizing the integrity of your trailer. No job is too big or small for the Scheltema Trailer’s Mini Deck.

MINI DECK SPECIFICATION

Lorem ipsum dolor sit amet, consectetur adipiscing elit. Mauris vitae libero molestie, aliquet nibh eu, euismod massa. Morbi efficitur ut nisi ac fermentum. Aenean magna libero, varius vitae turpis.

Gooseneck includes:

  • Hydraulic detachable cantilever, non-ground bearing.
  • Hydraulic Stinger to support gooseneck.
  • Wet Line operation.
  • Single king pin location.
  • 51″ Fifth Wheel height.
  • Air operated column.
  • Air operated deck locking pin.
  • Constructed from 100,000 P.S.I. yield (T-1) steel.
  • Sandblasted, epoxy primed and painted.

Available Options:

  • Various King Pin Heights (48”- 54”).
  • Double King Pin Variations (94”-120”).
  • Power Pack or both Power Pack and Wet Line.
  • Swing out Lights.
  • Bolt on Fenders.
  • Weld on Fenders.
  • Extension Lugs.
  • Gooseneck extension.
  • Hydraulic operated column.
  • Hydraulic operated deck locking pin.
  • Column: Lights, Chain Bar and Doors.

All-Steel Deck includes:

  • Carrying Capacity: 50-75 ton
  • 7” Deck thickness.
  • Available Deck Width: 8’6 – 9’.
  • Available Deck Length: 24’ – 26’.
  • Constructed from 100,000 P.S.I. yield (T-1) steel.
  • Flag holders.
  • Lashing rings.
  • Sandblasted, epoxy primed and painted.

Traditional Mini Deck includes:

  • Carrying Capacity: 40 ton
  • 7” Deck thickness.
  • Available Deck Width: 8’6 – 10’
  • Available Deck Length: 24’ – 26’
  • 1-5/16” Apitong floor.
  • Constructed from 100,000 P.S.I. yield (T-1) steel.
  • Extension Brackets 12” wide swinging type (T-1) steel.
  • Flag holders.
  • Lashing rings.
  • Sandblasted, epoxy primed and painted.

Available Options:

  • D-Rings: Flat or Bent (Traditional Mini Deck Only)
  • Deck inserts: 5ft, 10ft. (Traditional Mini Deck Only)

Rear Bridge includes:

  • Fixed with low boom trough.
  • Open style bolsters.
  • 55″ Axle spreads. (Depending on territory)
  • Constructed from 100,000 P.S.I. yield (T-1) steel.
  • Truck-Lite LED system.
  • Flag holders.
  • Tires: 275/70R 22.5.
  • Wheels: 22.5 x 8.25, Steel wheels inside and outside.
  • Brakes: Drum.
  • Axle:  25,000 lbs. capacity each.
  • Suspension: Hendrickson Turner or Ridewell, 25,000 lbs. capacity.
  • Sandblasted, epoxy primed and painted.

Additional Options:

  • Axle Spread (55”-75”)
  • Axle Configuration: 2,3 or 4 axles
  • Width: 8’6 – 10’
  • Axle Lift.
  • Deck Connection: Removable.
  • Lighting: Strobe (On/Off Switch, Battery)
  • Pin on Axle: 3rd, 4th or 5th.
  • Pin On: Shimable or Flip Lugs.
  • D-Sign/D-Sign Brackets.
  • Override Ride Height Control.
  • Swing out/pull out lights.

QUALITY GUARANTEE

Scheltema Trailer as a company is dependable and exceeds any standard of product quality. By way of its highly experience staff, a combined 100 years of professional design and manufacturing experience in our team of engineers, fabricators, and management, Scheltema Trailer consistently strives to produce reliable  custom quality products. Scheltema Trailer is a family company, and in saying so, our team of employees are a reflection of what we stand for but in their work; reliability and dependability on the quality of our products. Our team delivers high end manufacturing techniques and a full manufacturing facility capable of CNC, flame cutting, machining, shearing, forming operations.
